Eco-friendly PVC Spray Booth Cyclone System

Why choose an eco-friendly PVC spray booth system for the powder coating?

1. Cost-effective:

• It requires much less time for powder color changing,
• It has a much higher powder use ratio because the useless ultrafine powder will be filtered out so that the powder quality won't be reduced.
• When others throw away the inferior products in the trash bin due to contamination or other reasons, you will know how fortunate you are to have a PVC spray booth with a stainless steel cyclone powder recovery system.

2. High efficiency:

The booth provides a clear and clean environment for the coating process, which ensures more uniform coverage of the powder and reduces the chances of wastage.

3. Protection:

The reasonable design of the eco-friendly PVC powder spray booth's stainless steel cyclone powder recovery system makes sure no powder flies out of the booth during the spraying, which ensures a safe and healthy workspace for workers.

4. Versatile:

PVC powder coating spray booths can be used for a wide range of applications, and they can be used in a manual coating line and also an automatic coating line.

5. Consistency:

The PVC powder spray booth system is made of high-quality material and is designed after strict calculations of many parameters, which makes sure a long lifespan and won't be damaged under normal use which is essential for a continuous workflow.

6. Customization:

The PVC spray booth system can be customized to suit the specific needs and requirements of the application, which ensures optimal performance and efficiency.







What does the stainless steel cyclone powder recovery system do in a PVC powder coating spray booth system?

The stainless steel cyclone powder recovery system is an essential part of the PVC powder coating spray booth system.

It plays a crucial role in reducing waste and optimizing the coating process.

The cyclone powder recovery system is designed to collect the overspray powder which can be reused in the coating process and filter out the useless ultrafine powder, thus the original powder quality won't be affected.

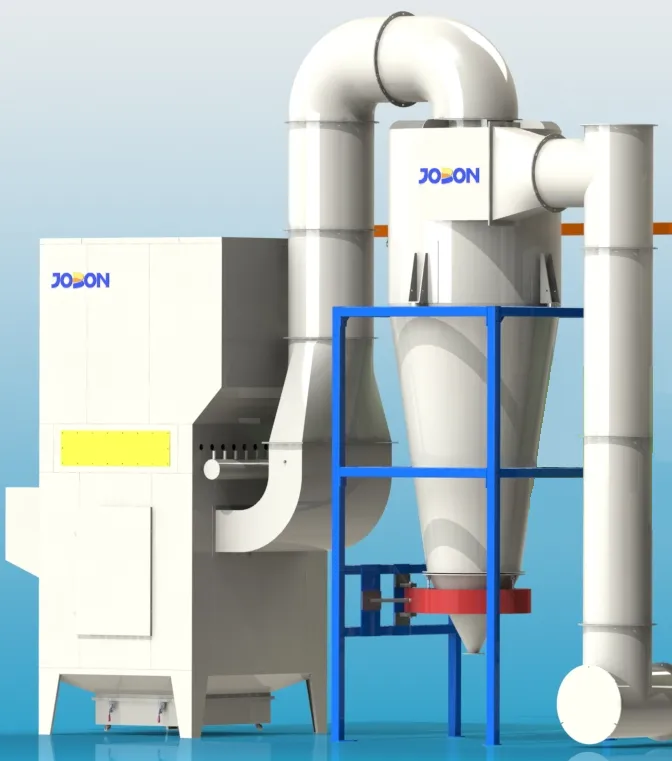

The stainless steel cyclone powder recovery system consists of several components, including a cyclone, a powder return pump, a two-stage filtration powder recovery unit, and sometimes a powder collection hopper.

(1) The cyclone including the powder return pump is used to filter the good-quality powder and convey it back to the automatic sieving machine to go into the powder coating routine again.

(2) Some ultrafine powders will be generated during the spraying, and these ultrafine powders are useless. The two-stage filtration powder recovery unit is responsible for separating the useless ultrafine powder from the airflow and dropping it into the trash bin.

(3)  If you use a manual PVC powder spray booth system, then a powder collection hopper will be equipped with the powder return pump to collect good-quality powders for reuse. If you use an automatic PVC powder spray booth, then no need to use the powder collection hopper, the good-quality powder will return to the automatic sieving machine automatically.



The benefits of the stainless steel powder recovery system are significant.

It reduces waste, saves costs, improves powder & product quality, and promotes environmental friendliness.

A good stainless steel cyclone powder recovery system also contributes to a safer working environment by minimizing exposure to harmful dust and particles.

Remember, a good-quality cyclone powder recovery system's inner wall should be made of stainless steel, not powder-coated steel.

In conclusion, the stainless steel cyclone powder recovery system is a critical component of the PVC powder coating spray room. It helps to optimize the coating process by reclaiming and reusing good overspray powder. It offers numerous benefits to the coating process, and an investment in a quality powder recovery system can yield significant long-term savings.







How to change the powder color in 15 minutes when using the eco-friendly PVC powder spray booth system?

Packing and delivering for the PVC powder coating booth with cyclone powder recovery system

The PVC booth with cyclone powder recovery system can be customized to meet different customers' requirements.

And all the powder coating machines will be packed well before shipping.
