Fast Color Change Booth
Booth material must be PVC, because metal material stick powder much than PVC material
***Product and Feature
Description: Fast Color Change Booth
Manufacture Origin: China
JOBON Brand
Certification: CE, ATEX
How to realize fast color change:
(1) Booth material must be PVC, because metal material stick powder much than PVC material

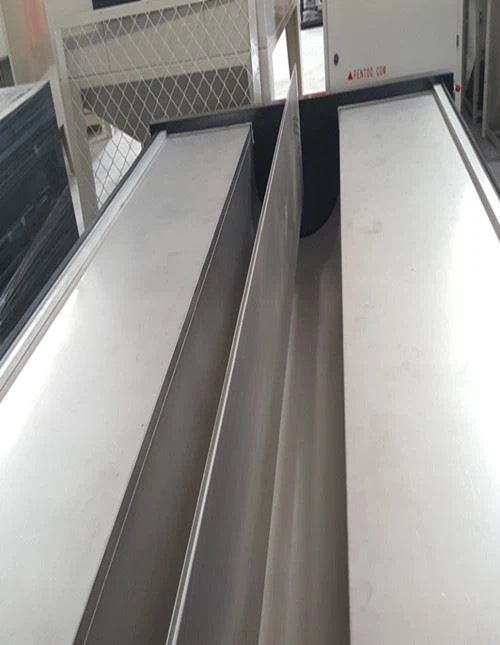

(2) Booth bottom shall not accumulate powder, so must use 1U bottom

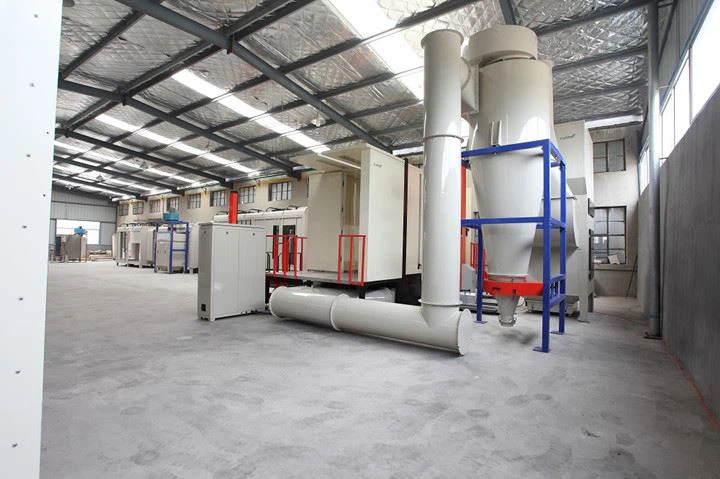

(3) Filter recovery system cannot help for fast color change. So cyclone system is a must for fast color change.
(4) Cyclone system connects to two stage recovery system, and the powder at cyclone bottom can return to powder hopper automatically
(5) The use of powder center can help a lot for the color change of automatic booth
 |  |
Feature of fast color change booth:
Why we choose PVC material not PP material to do the fast color change booth?
Comparison table of PVC and PP
No | Comparison Items | PP | PVC | Effect |
1 | Wear resistance (Surface hardness） | bad | good | PVC is good for users: Can be kept smooth for a long time without sticking powder |
2 | Aging resistance (Weather resistance) | bad | good | PVC is good for users: Can maintain toughness and finish for a long time; |
3 | Life | Short, Gradually age under natural visible light | Long, More than 30 years in natural visible light | PVC is good for users: long lasting life; |
3 | Flame retardant performance | Bad; adding flame retardant can improve | Good, with self-extinguishing characteristics | PVC is good for users. |
4 | Cutting | Easy(material is soft) | Hard (material is very stiff) | PP is easy to produce and be good to equipment manufacturers. |
5 | Welding | Easy | Hard | |
6 | Hot bending | Easy | Hard | |
7 | Cold bending | Easy | Hard | |
8 | After-welding Seams Polishing | Easy; Seams can be leveled with ordinary woodworking tools, even with a knife by hand. | Hard; High hardness, hand tools cannot be used to flat the seams. |
Why we choose stainless steel material not carbon steel material to do the Cyclone?
Comparison between stainless steel cyclone and carbon steel cyclone
No | Comparison Items | Carbon Steel Cyclone | Stainless Steel Cyclone | Effect |
1 | Material cost | Low | High | Stainless steel is expensive |
2 | Welding | Easy. Carbon dioxide shielding welding Easy to realize automatic welding. | Difficult. Argon arc welding Requires manual welding. | Welding for stainless steel is higher. |
3 | Inner wall coating life (powder coating or wet paint) | Extremely short. High-speed rotating powder will quickly wear off the inner wall coating. | No inner coating. Pure stainless steel. | Stainless steel is exposed to powder directly. |
4 | Rust appear on the inner wall | Easy to have rust. | Never have rust. | Floating rust generated on the inner wall of ordinary carbon steel cyclones will pollute the recycled powder and even turn white powder to red. |
5 | Inner wall rust spots | Easy to form rust spots. And then form a vicious circle, leading to the scrapping of the cyclone; | Never have rust spots. | Unscheduled rust spot powder will pollute the recycled powder. And worse case it to cause cyclones to be scrapped. |
***Application
(1) Fast color change booth is good to use for a very busy powder coating plant.
(2) Fast color change booth is good for a powder coating plant that needs to change several times of colors a day.
(3) Fast color change booth can save a lot of labor cost.
***Working Video
***FAQ
(1) Q1: --What is the manufacturing time?
--20days~30days.
(2) Q2: --Are you a trading company or a factory?
--No, we are manufacturing factory.
(3) Q3: --Can you customize my LOGO? OEM?
--No, we only apply our own logo: JOBON, PENTOO.
(4) Q4: --How to do assembly?
--This small booth will be shipped in a whole assembled unit.
(5) Q5: --What is the filter service life?
--2years.
***Warranty/After Sales Service
(1) One-year warranty
(2) Maintenance parts available all the time
(3) 24hours on line sales service available
***About JOBON company
(1) ISO9001
(2) High-Tech factory
(3) Start from 1999 to manufacture and supply powder coating machinery
