Electrostatic Powder Spraying Gun

Qingdao JOBON Science & Tech Development Co., Ltd. Product Introduction

M2 Electrostatic Powder Coating Machine

（Pursue The Highest Cost Performance）

Company Profile：

●Registration Date：2005

●National High-tech Enterprise

●ISO9000 Quality Management System Certified

●China Enamel Industry Association Vice-Chairman Unit

●China Enamel Equipment Engineering Technology Research Center

●China Surface Engineering Association Coating Branch Executive Council Unit

●Member of the National Standards Committee

●Donghua University Postgraduate Training Base

●Qingdao City Technology Innovation Center

●Qingdao City Specialized&Refined&Differential&Innovative Enterprise ●New Fourth Board Listed Enterprise

●Equipment Supplier of Haier

●EU CE and ATEX Certified

●66 National Patents，1 International Patent，4 Copyrights of Computer Software

●JOBON Electrostatic Powder Coating Equipment Have Been Exported to UK, Denmark, Russia, Belarus, Hungary, Slovenia, Algeria, Egypt, Jordan, UAE, Qatar, Saudi Arabia, Bangladesh, Japan, Vietnam, Philippines, Malaysia，Indonesia, Canada, US, Mexico, Dominica, Brazil, Chile, etc.



M2 Electrostatic Powder Coating Machine Advantages

Higher Performance Than Imported Equipment, Cost-effective, Simple To Use, Long-term Stability

1、Authorized Patent and Software Copyright：

（1）Domestic Invention Patent：1

（2）International Invention Patent：1

（3）Appearance Patent：1

（4）Copyright of Computer Software：1

2、EU CE and ATEX Certified；

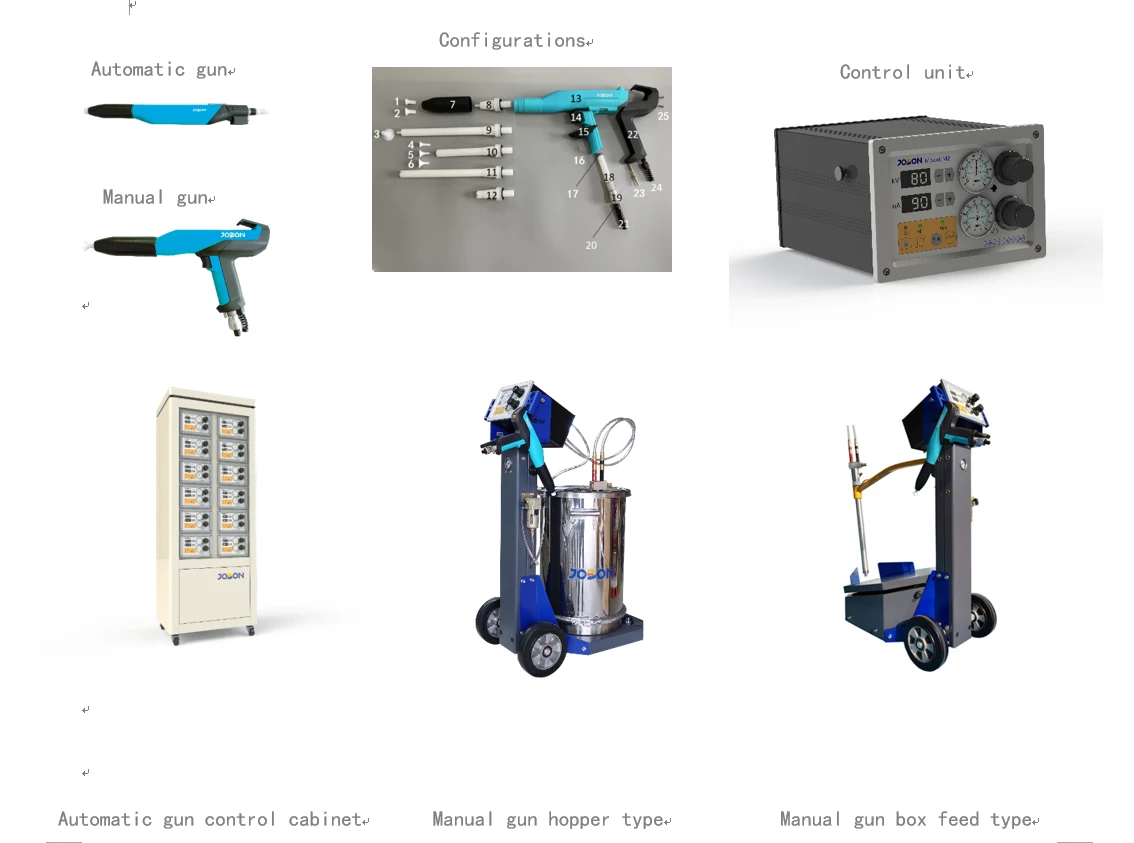

3、Manual Gun and Automatic Gun with Multiple Configurations；







4、M2 Direction and Significance of Main Technological Progress

Item	Technological Progress	Direction and Significance
1	Improved The Ability to Overcome Faraday Effect	1、Solve Deep Grooves and Corners Coating Easily； 2、Easy to Automate, Even Without Robots； 3、Low Requirements For Operator Experience； 4、Reduce The Difficulty of Robot Programming for Automatic Spray With Robots；
2	Improved One-time Powder Rate	1、Higher Spray Efficiency，The Same Amount of Powder Can Spray More Area； 2、Less Recycled Powder，Spray Quality Is More Stable While Reducing The Cost； 3、No Accumulational Powder Inside The Part； 4、Powder Thickness Is Consistent and Uniform From Top to Bottom of The Part；
3	Improved Back-side Automatic Coating Capability	1、More Easily To Automate, Qualified Rate Is Improved； 2、Spray Quality Management Is Easier； 3、Greatly Improved The Spray Efficiency； 4、Reduce The Difficulty of Robot Programming For Automatic Spray With Robots；
4	Improved Electrostatic Adsorption Capacity	1、Powder Seldom Fall Off After Spraying； 2、Higher Qualified Rate；
5	Improved Stability	Long-term Stable Production.



5、M2 Special Functions：

（1）Master/Slave Function：Any machine in the cabinet can be designated as the master machine, when the master machine works and stops, the slave machine will automatically execute synchronous action；

（2）Master/Slave + Locked：If you do not want to use one slave machine, you just need to click the LOCK button on its panel then the machine will be locked, and it will not synchronize with the master machine, even if power-on again it will still remember the LOCK state. Press the LOCK button again will release the lock；

（3）Repair Function：When user needs to spray the reworked part, it is not necessary to spend time to set electrostatic parameters, just press the REP button, it will switch to the repair mode. When finished the repair spray, just press REP button again to switch to normal working state；

（4）It can be connected to robot or PLC to response their "on/off" signal；

（5）Power voltage：AC100V-240V/50-60Hz automatic adaptation；

6、M2 Performance Display and Application Cases：

T-shaped part, single-side spray to complete all faces and angles powder coating.











Refrigerator radiator, single-side spray will complete both sides, including all pipelines welded cross constituted "Faraday Angle".



4*30mm bent deep grooves are sprayed easily. At the exhibition, audiences are invited to test spray and check the spraying effect.



Horizontal and vertical cross welded fence, complete automatic spray, included angles are coated perfectly, no need manual repair.
