JOBON M2 Manual And Automatic Powder Coating Gun
M2 powder coating gun is the number 2 best powder gun in the world.We have many comparative cases to prove it.
Qingdao JOBON Science & Tech Development Co., Ltd. was established in 2005. It is a scientific and technological manufacturing enterprise integrating R&D, production and service.
Our main products include:
Manual and Automatic Powder Coating Gun(for Epoxy powder and Enamel powder)
Manual and Automatic Booth(Single station booth,Two station booth,Four station booth)
Curing Oven(Cabinet oven,Bridge heat insulation oven,Air curtain heat insulation oven)
Conveyor System(Track,Chain,Rail,ect)
Reciprocator(Light duty reciprocator,Heavy duty reciprocator)
Powder Center & Centralized Powder Supply Hopper & Sieving Machine
Manual Powder Coating Line
Semi-Automatic Powder Coating Line
Automatic Powder Coating Line
Dip Tank Pre-treatment Line
Spray Pre-treatment Line.

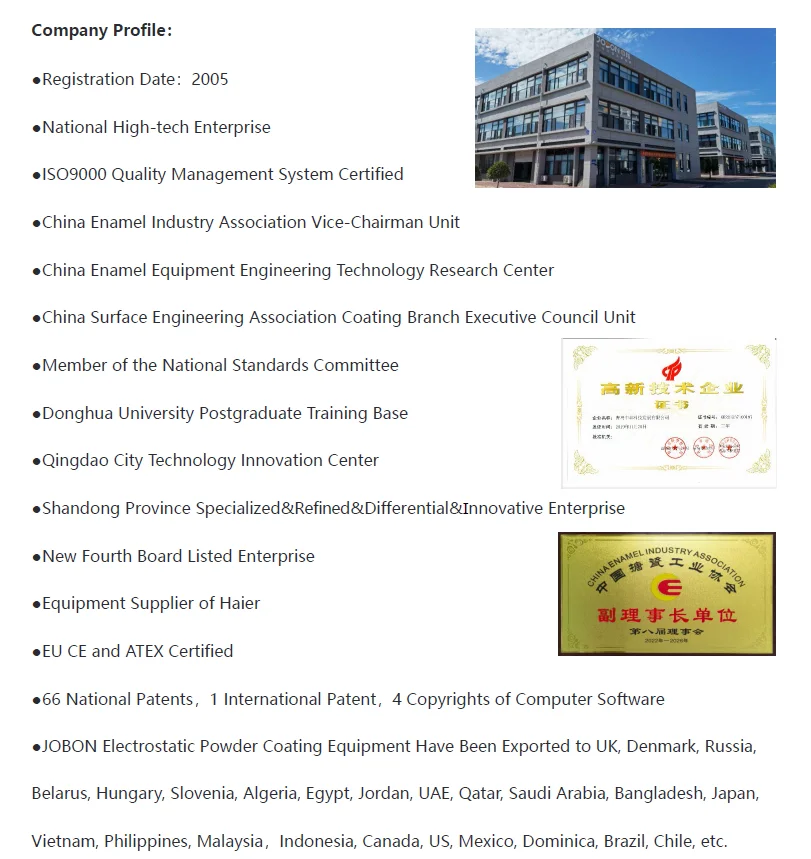

Our company is the China Enamel Equipment Engineering Technology Research Center, the vice-chairman unit of the China Enamel Industry Association, the member unit of the National Enamel Standard Committee, the national high-tech enterprise, the doctoral graduate training base of Donghua University, and the executive director unit of the Coating Branch of the China Surface Engineering Association, the equipment supplier of companies such as Haier and Electrolux etc.
We have our own brand JOBON, and the main products have passed the EU CE and ATEX explosion-proof certification; and the company's enamel electrostatic powder coating equipment has been exported to the United States, Japan, UK, France, Russia, Australia, Mexico, Canada, Saudi Arabia and many other countries and regions.
Mr. Pan Pengfei, chairman of the company, is an internationally renowned expert in enamel electrostatic powder spraying technology. He has obtained more than 60 domestic and internatioanl patents, published 2 international professional papers and 2 domestic papers on enamel electrostatic powder coating, and was awarded by Donghua University as a doctoral tutor.
Our goal is to provide the best electrostatic powder coating equipment and the best service for global users.

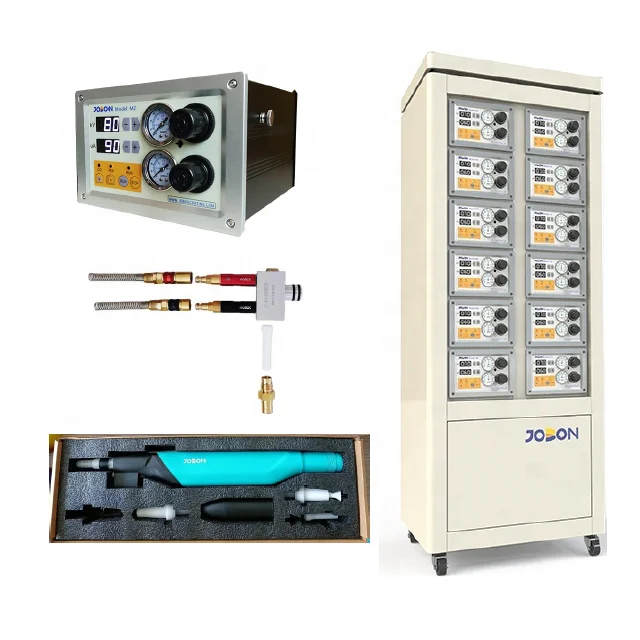

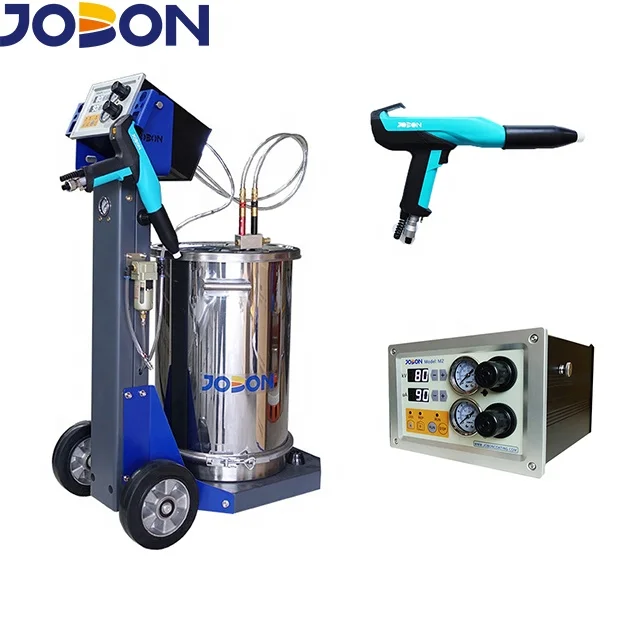

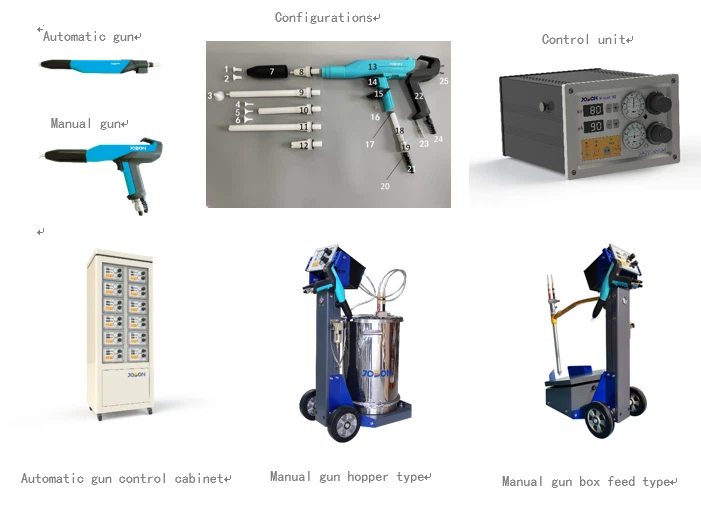

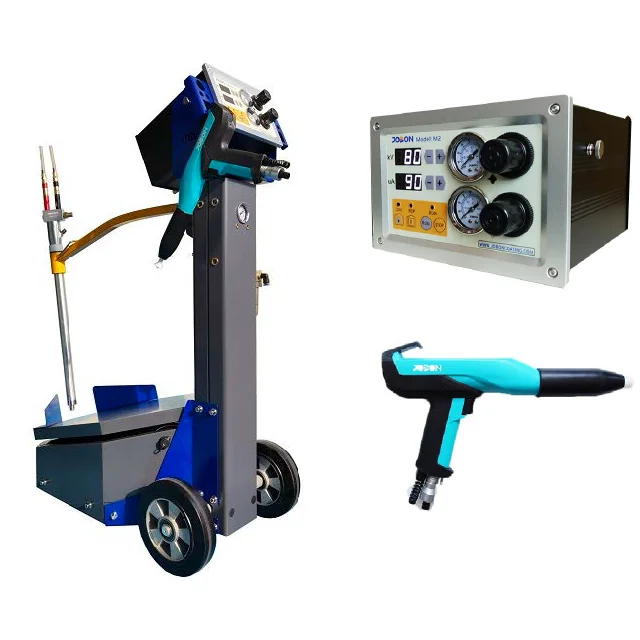

JOBON Brand Model M2, Manual & Automatic Powder Coating Machine
Advantages:
Narrow and deep grooves coating can be easily completed.
With automatic cladding coating function.
Wide voltage range: AC100-240V self-adaptive.
The control is safe from direct impact of static electricity.
Control Way: Digital Control.
Certificate: CE, ATEX certified.
Service life: long service life for more than 10years.
Maintenance: low maintenance fee.
Operation: easy operation for different levels of powder coaters.
Working condition: low power electronic circuit, suitable for 24 hours * 365 days of long time operation.
No-load power (100kV, 100uA, no run) consumption is less than 3 watts, and full load power consumption (100kV, 100uA, run) is less than 18 watts.
M2 has an embedded computer system, which automatically controls the output voltage and current when coating.
The front and rear panels of aviation aluminum processed by CNC are equipped with specially designed seals, which have good sealing performance and can adapt to harsh environment.
Sand blasting aluminum case has good heat dissipation property and high dimensional accuracy. It will not get rust and has long service life.
Factory default: kV-80, μA-90, Powder Ejection pressure 0.2Mpa
Lock Button: press the lock button to lock the machine when changing color or cleaning the gun, so as to prevent mistriggering of powder coating.
One M2 gun can work as master to control other guns in one automatic line. All M2 guns in one automatic line can also be controlled by PLC system.
|
Voltage |
100~240V |
|
Frequency |
50~60Hz |
|
Max Power |
50W |
|
Safety Level |
IP54 |
|
Ambient Temperature |
0-40℃ |
|
Input Pressure |
0.5-0.8MPa (5-8bar, 72-116PSI) |
|
Max Moisture Content of Compressed Air |
1.3g/cubic meters |
|
Max Oil Content of Compressed Air |
0.1mg/cubic meters |
|
Electrostatic Polarity |
Negative |
|
Max Output Voltage |
130kV |
|
Max Output Current |
100μA |
|
Gun Cable Length |
3.8m |
|
Powder Duct Length |
3.5m |
|
Max Powder Output |
650g/min |
JOBON company will provide the best quality service for all domestic and international customers.

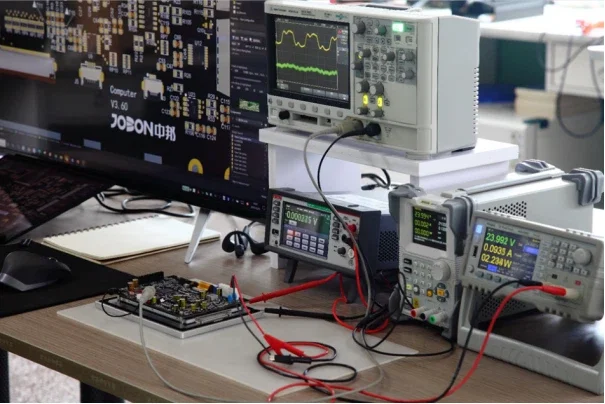

1. Superior Quality: We have over 15 years of technology accumulation, all our spraying equipment's programming, designing, and development are done by our own full-time engineers, and all coating machines are done in our own factory with the highest quality materials, ensuring outstanding performance and longevity.
2. Customizable Features: We offer a range of customizable features to meet the specific needs of our customers.
3. Cost-effective Solution: Our spray equipment represents a cost-effective solution for all our customers, with low maintenance requirements and reduced operating costs.
4. Technical Support: We have a team of highly experienced technicians who provide exceptional technical support and maintenance guide services to keep our customers' spray equipment operating at peak efficiency.
5. Industry Endorsement: Our spray equipment has received endorsements from many industry leaders and reputable organizations in our domestic market and oversea customers' praises, further demonstrating our commitment to quality and innovation.
6. Global Reach: We have distributors and partners who provide local support and service to our customers in more and more countries.
7. Patents and Innovations: We hold numerous patents including 9 invention patents 1 international patent, we also have a history of developing innovative spray equipment solutions that meet the changing needs of our customers and markets.
JOBON/PENTOO powder coating equipment has been widely exported to customers all over the world: Japan, Mexico, Russia, United Kingdom, Denmark, Belarus Republic, Colombia, Dominican Republic, UAE, Saudi Arabia, Qatar, Belgium, US, Canada, Chile, Indonesia, Bangladesh, Philippines, Portugal, Slovenia etc.

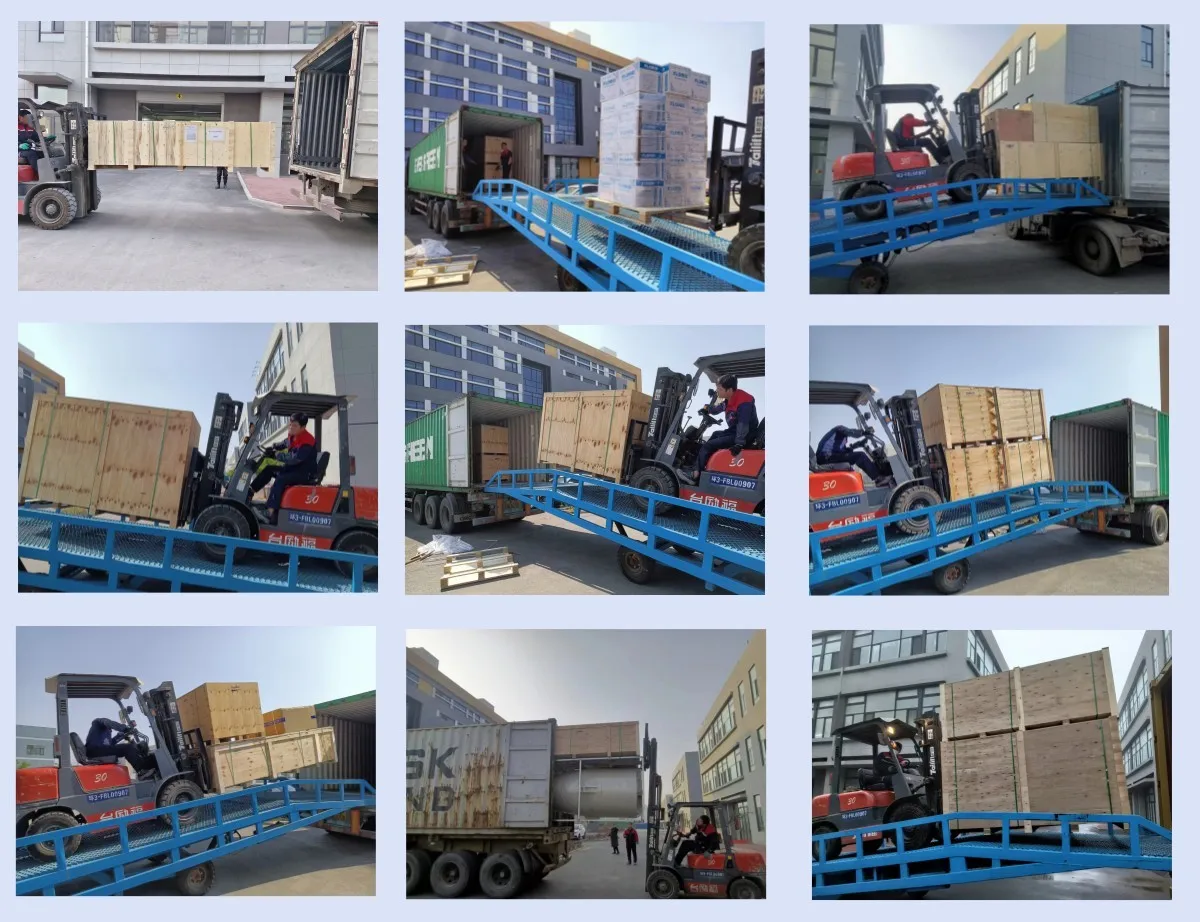

We supply 24hours on-line service, and we supply on site assembly service. We supply express shipping, air shipping and ocean shipping.
We supply 2-year warranty for our powder coating gun cascade and circuit board.
We supply 2D and 3D drawings for powder coating line design and detailed powder coating equipment setting reports.
Welcome for customers all over the world to visit us and discuss powder coating equipment and technology together.
