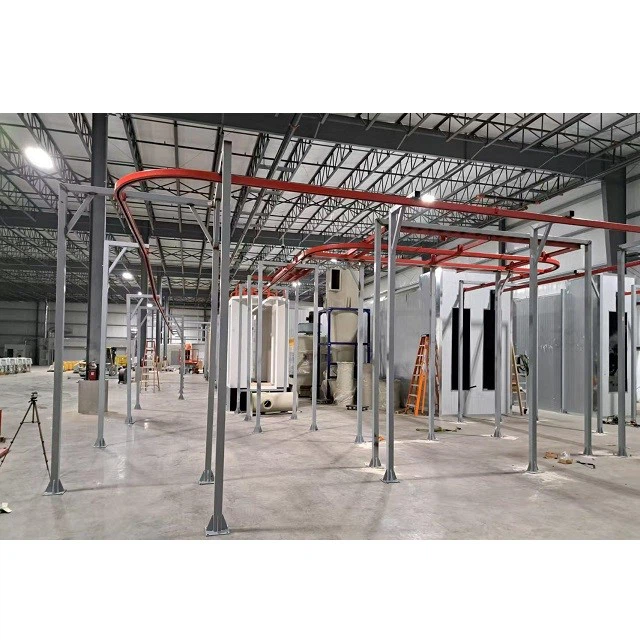

Stable Running Fully Automatic Electrostatic Powder Coating Line

The fully automatic electrostatic powder coating line is designed to automate the entire coating process, from loading parts to washing pretreatment, drying, powder coating, curing, and unloading.

Here we will discuss each step in the process, important considerations, and potential equipment issues that may arise during operation.

1. Loading Parts onto the Line

When loading parts onto the line, it is important to ensure that they are properly positioned and securely attached to the conveyor system. This will help prevent any damage to the parts during the coating process and any dead corners when washing. Additionally, ensure the loading space is big enough for parts turnover.



2. Pre-Treatment

Before the parts can be coated, they must undergo pre-treatment to ensure that all parts have no oil, no rust, and no dust. This typically involves cleaning the parts with chemicals and water to enhance adhesion. It is important to follow the chemical suppliers' guidelines for pre-treatment to achieve the best results, and it's also important to make sure the air in the working environment is clean to avoid any flying fibers.

Tips:

(1) There should be no mixture between chemicals when washing.

(2) Check the control system;

(3) Avoid any leakage at the washing tunnel bottom.



3. Drying

After pre-treatment, the parts must be dried before they can be coated. This can be done using a drying oven. It is important to ensure that the parts are completely dry before applying the powder paint to avoid any issues with adhesion or finish quality.

Tips:

The whole heating system should be efficient, easy-operating, and have a long-lasting service life.



4. Powder Coating

The powder coating process involves applying powder paint to the part's surface using an electrostatic powder coating gun. The powder coming out of the gun will be charged with an electrostatic charge, which causes the powder to adhere to the metal surface.

Tips:

(1) It is important to ensure the use of the high-performance powder coating spraying gun so that it can apply the powder evenly to each corner of the metal part surface at the correct thickness to achieve a smooth and consistent finish.

(2) The powder should be clean and in good condition.



5. Curing

Once the parts have been coated, they must be heated in a curing oven to melt the powder paint onto the part surface. You can follow the powder using instructions for curing time and temperature to ensure that the coating is properly cured and durable. Normally, you can set the constant temperature curing time as 20 minutes, and the constant heating temperature as 180- 200 degrees.

Tips:

(1) The oven's heat-resistance property, energy consumption, etc., are very important. You can set several measuring spots at different heights to test the oven temperature to see whether the heat is evenly distributed and whether the oven temperature rises stably without sharp fluctuations at each position.

(2) The whole heating system, including the oven control system, is very important.



6. Cooling and Unloading

After the parts have been cured, they must be allowed to cool before they can be unloaded from the powder coating spraying line.

Make sure there is a big space to unload parts.



7. The whole chain conveyor system

(1) The design & choice of raw material should be reasonable to avoid any hits while running and ensure long service life.

(2) The lubrication of the chain should be designed accurately to avoid oil dripping.

(3) The control system should be efficient.



The fully automatic electrostatic powder coating line is a highly efficient and reliable solution for bulk production.
