***Product and Feature

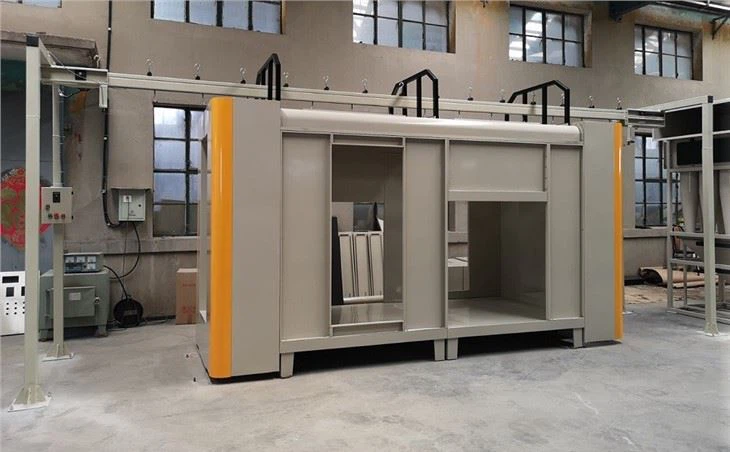

Description: Double Station Powder Coating Booth

Certification: CE, ATEX

Advantage:

(1)   The material is electrolytic galvanized steel sheet with powder coated surface, with long service life more than 20 years.

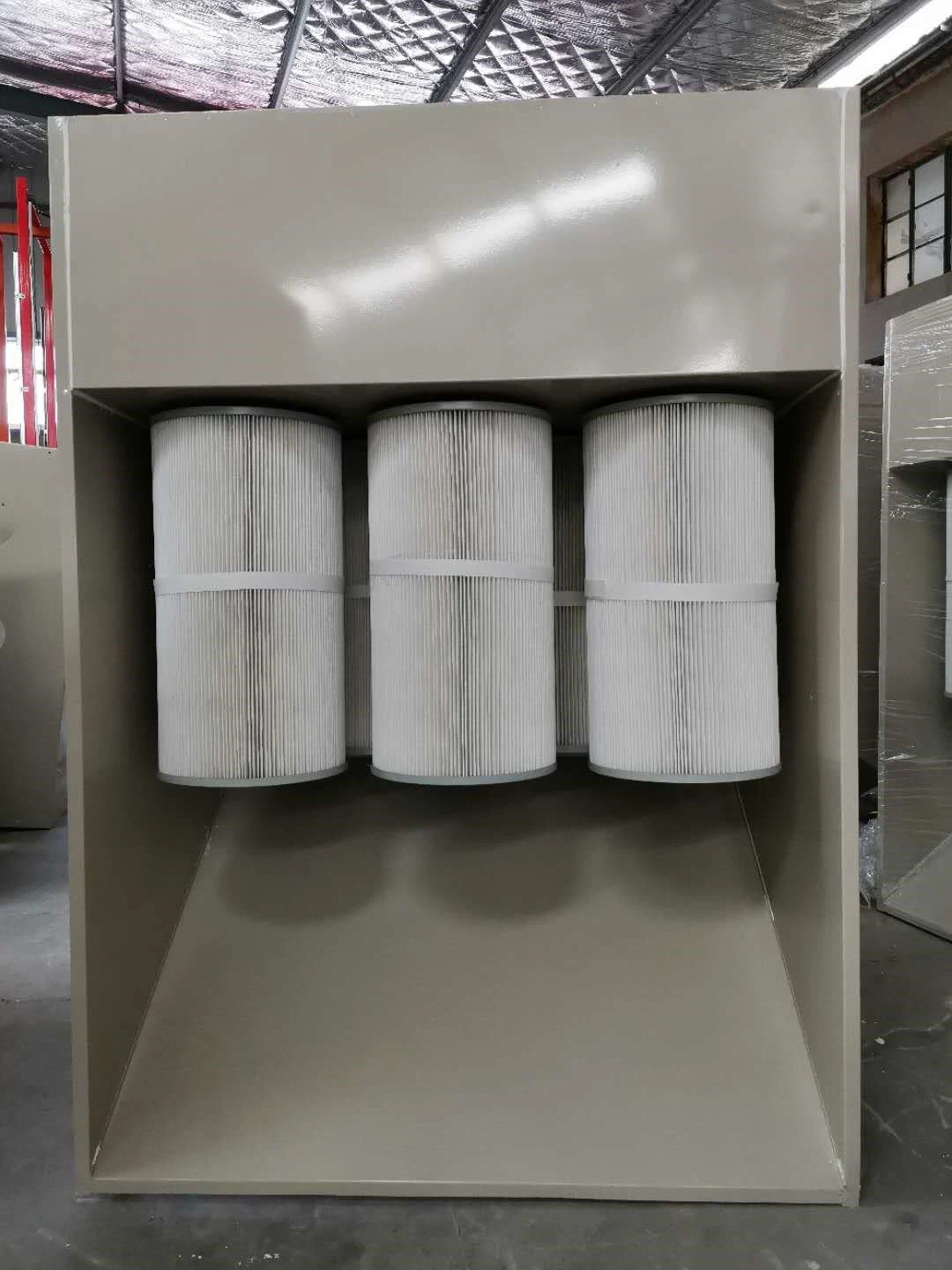

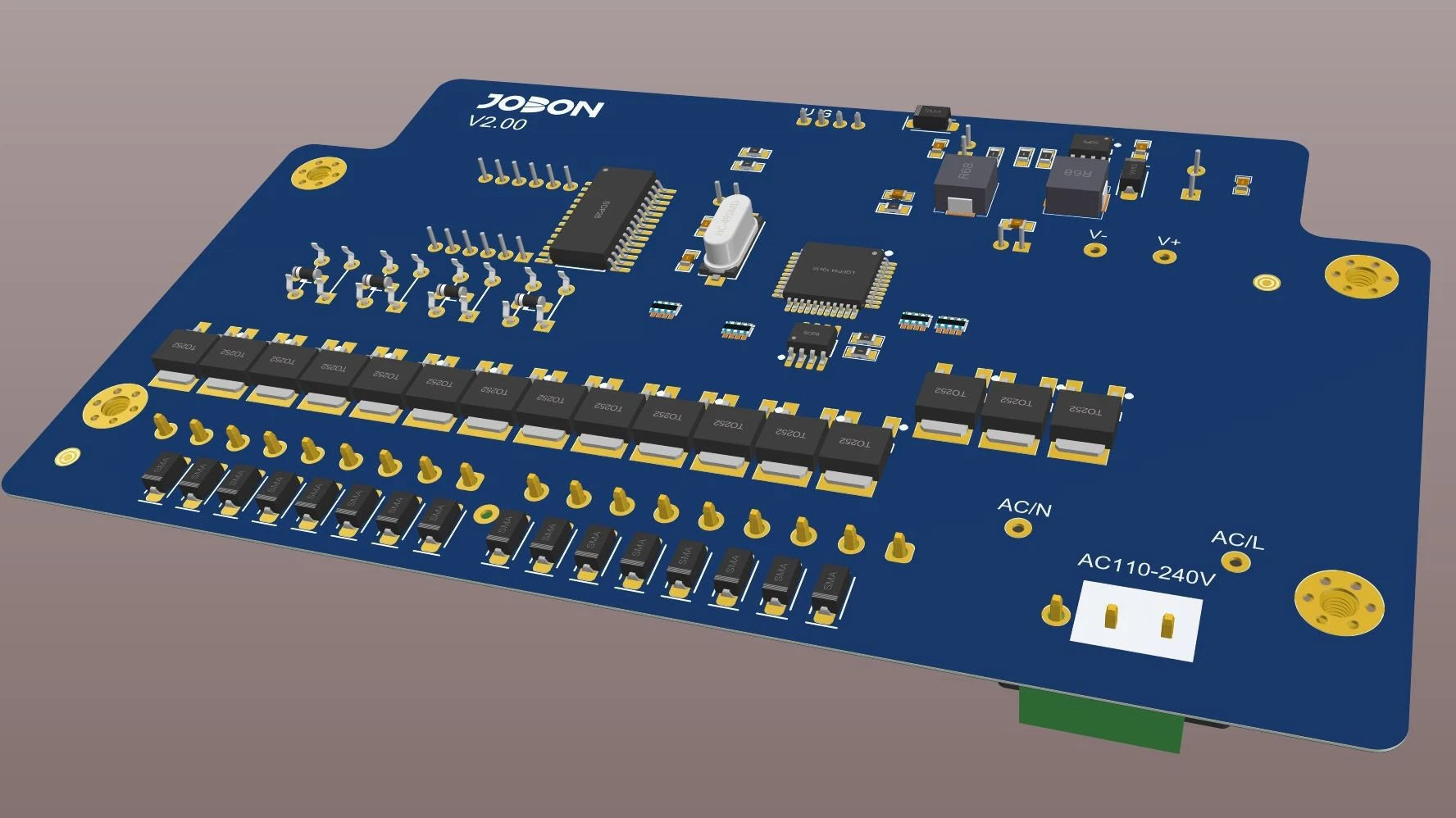

(2)   High precision filters with 0.1micron filtration rate, can help to separate the powder and air. Patented pulse control circuit board, can keep the filter’s back blown function working good for all the time to keep the booth always at a good air flow condition and avoid filter surface blocking.

(3)   Independent LED lighting system, can have long service life of LED light and keep good lighting during powder spray.

(4)   Two side spray, needs two workers to spray at each side. This is the most efficient powder coating way.

(5)   The double station powder coating booth can cooperate with automatic conveyor; the use of automatic conveyor can reduce a lot of labor and can also help to do even thickness powder coating on parts.

(6)   Powder can be collected and recycled for reuse.

***Application

(1)   Double station powder coating booth, steel material, two spray stations, can cooperate with automatic conveyor on the automatic powder coating line --- efficient and convenient

(2)   Flat bottom booth, no corners inside, can easily change color

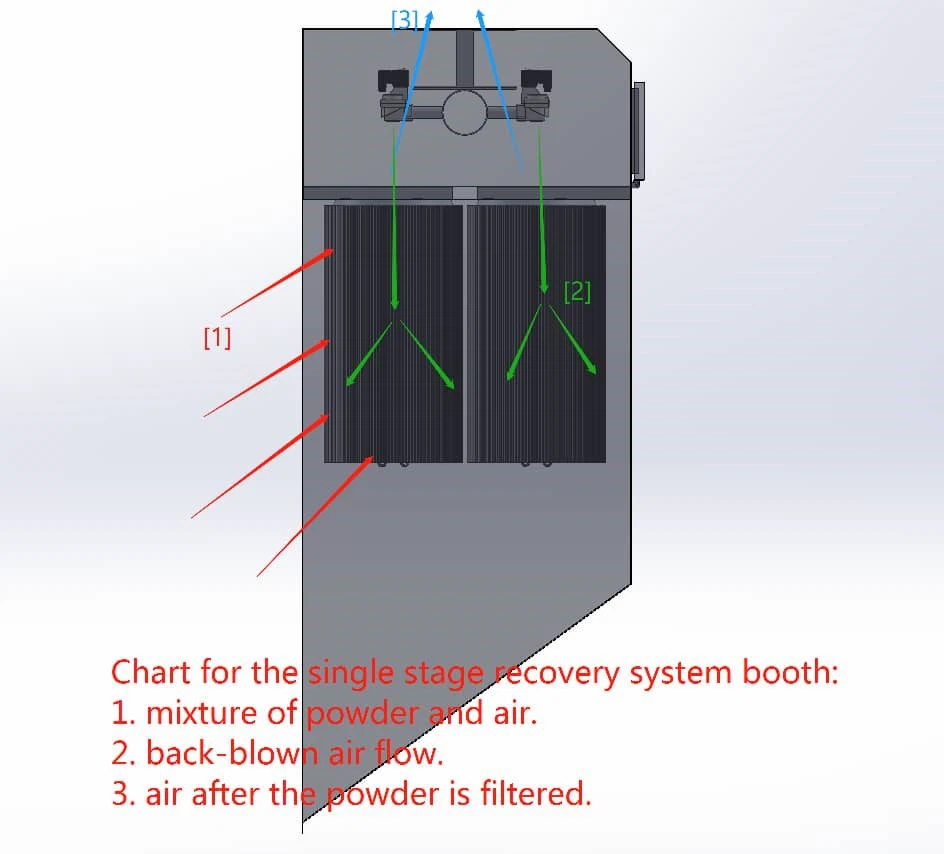

(3)   Single stage recovery system and need change filters when you change color

***FAQ

(1)   Q1: --Production lead time for this type of PVC manual spray booth?

--20days~30days.

(2)   Q2: --What is important for a powder coating booth?

   --Recovery system is important, and it helps the air flow to separate powder and air, and to keep the powder inside the booth. The booth powder return route is important, and it can determine how fast you can clean the booth and change color. And the booth material is important, and good material can keep in good condition for more than 20years.

(3)   Q3: --What is the filter service life?

   --Two years.

(4)   Q4: --How many minutes do I need to change color for a steel booth described above?

   --Half an hour.

(5) Q5: --What is service life for this type of manual powder coating booth?

      --More than 10years.

(6) Q6: --Does your product listed?

      --Yes, CE and ATEX.

***Warranty/After Sales Service

(1)   One-year warranty

(2)   Maintenance parts available all the time

(3)   24hours on line sales service available

***About JOBON company

(1)   ISO9001

(2)   High-Tech factory

(3)   Start from 1999 to manufacture and supply powder coating machinery
