Three-unit single-stage indoor exhaust air recovery system, in line with environmental protection requirements; power saving; energy saving; low noise. Suitable for manual single station powder coating booth and manual two station powder coating booth.

Send Inquiry

Description

Three-unit single-stage indoor exhaust air recovery system

Three-unit single-stage indoor exhaust air recovery system

1. Advantage

(1) Indoor exhaust air, in line with environmental protection requirements

(2) Power saving, energy saving, low noise

(3) The price advantage is obvious (the price is equivalent to the outdoor exhaust air)

(4) Easy to install and transport (the whole three-unit single-stage indoor exhaust air recovery system is divided into 2 parts, the filter element room and the fan room)

a. The coarse filter plate is disassembled in the top fan room, and there are lifting ears at both ends for easy hoisting

b. When splicing the upper and lower parts, after aligning the positions, there are pre-installed screw holes on the 3 sides, and self-drilling holes are pre-drilled on the other side for positioning, which is convenient for installation

c. There are fan power cord outlets (waterproof heads) at both ends, customers can choose at will

d. There is a label on the top of the fan motor to indicate the direction of the fan to prevent customer wiring errors

e. Boxes of the same specification have the same size

f. Use high-quality cold-rolled electric zinc sheet, the surface is sprayed with outdoor high-gloss white plastic powder, the surface is smooth and the color is beautiful

(5) The appearance is beautiful and generous

(6) High-precision chuck membrane filter recovery (900KPFM), easy to install and disassemble

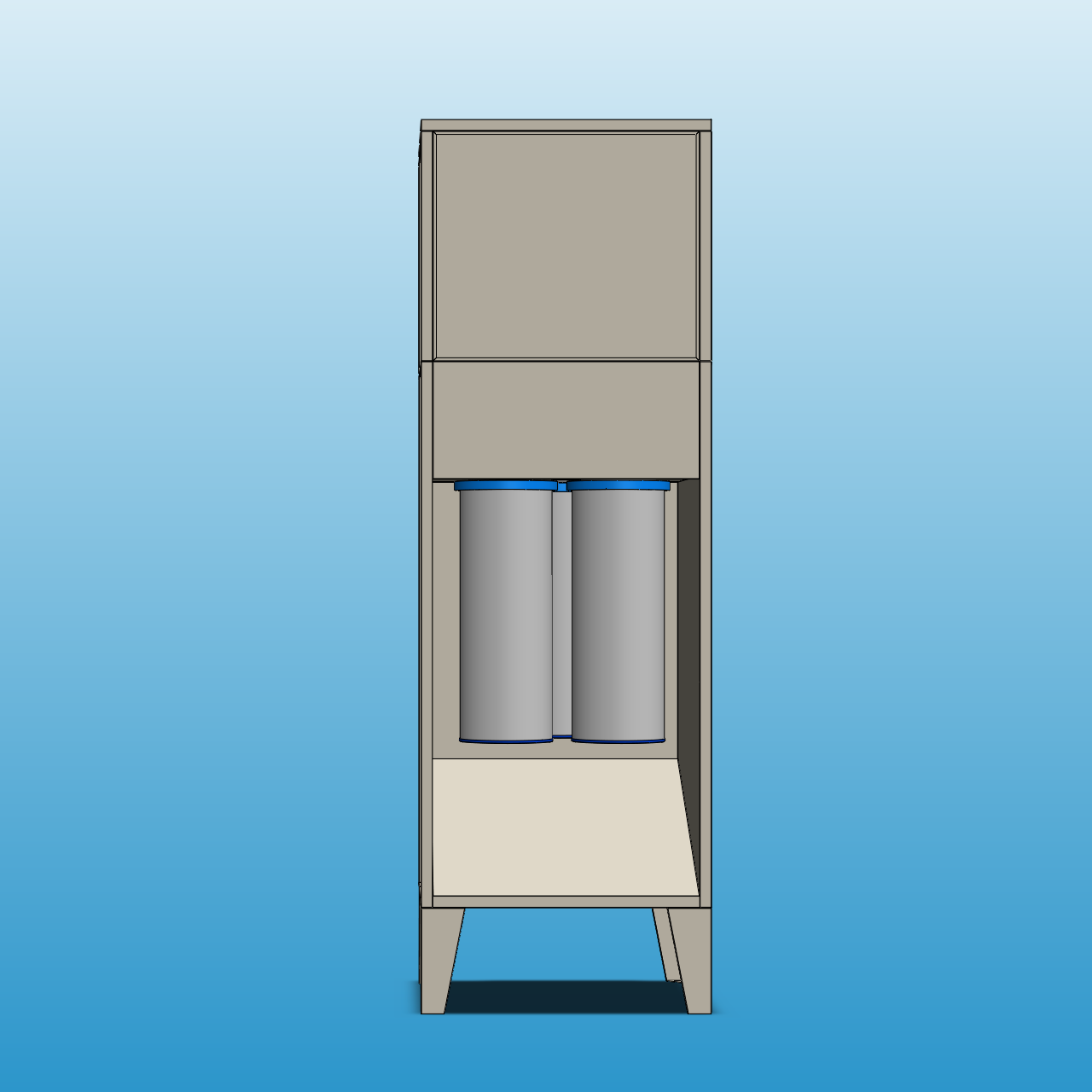

3 unit recycling system
