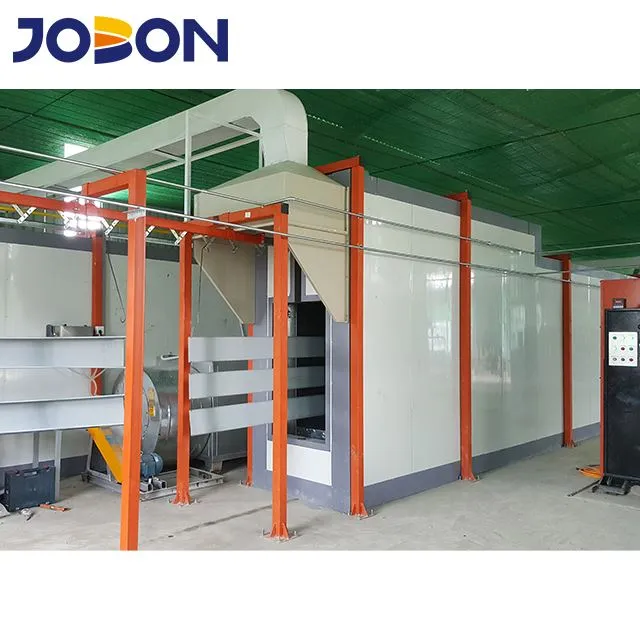

Automatic Powder Curing Tunnel Oven
High capacity powder curing tunnel oven is designed to do continuous non-stop powder curing production
***Product and Feature
Description: Automatic Powder Curing Tunnel Oven
Origin: China
Certification: CE
Type: Tunnel oven, used on automatic powder coating line
Advantage and feature for automatic powder coating tunnel oven:
(1) High quality design with best Riello burner and best rock wool insulation board
(2) Compact design to save energy
(3) High capacity powder curing tunnel oven is designed to do continuous non-stop powder curing production
(4) Air curtain at both ends of the oven, is to help to keep the hot air inside oven to save energy and keep temperature consistent
Specification of automatic powder coating tunnel oven:
(1) Insulation board thickness: 150mm
(2) Max temperature allowed: 250degree
(3) Hot air circulation for curing
(4) Parts need to stay in the oven at consistent temperature of 190~200degree for 20min
(5) Warm up: 20min
If you want to customize automatic powder coating tunnel oven to replace your old oven, please tell us of following specifications:
(1) The size of your workpiece, and shape
(2) The old oven section drawing to show all portion dimensions, including overhead conveyor height
(3) The chain speed
(4) The layout of old oven
(5) Heating powder do you want to use: gas or diesel
(6) Please be noted: a wet paint oven cannot be upgraded to a powder curing oven, because the wind speed, wind volume, temperature, heat insulation way, timing etc are all different.
Welcome to visit us.
***Application
(1) Automatic powder curing tunnel oven is designed for automatic powder coating line with continuous overhead conveyor system.
(2) It is good for powder cuing of all types of metal products powder coating, with good performance and good curing effect.
***Working Video
***FAQ
(1) Q1: --How about your delivery time?
--Generally two weeks is okay for production. And if your local voltage is different, we will build to meet your requirement, and this will take more days.
(2) Q2: --Are you a trading company?
--No, we are manufacturing factory.
(3) Q3: --Can you customize my own booth to fit my products?
--Yes, all dimensions and electric specifications can be done per customer’s request.
(4) Q4: --Do you run and test the booth before shipping?
--Yes, we always have high requirement for quality control. And we will run and test all equipment before delivery.
(5) Q5: --What is service life of the filters?
--2years
***Warranty/After Sales Service
(1) One-year warranty
(2) Maintenance parts available all the time
(3) 24hours on line sales service available
