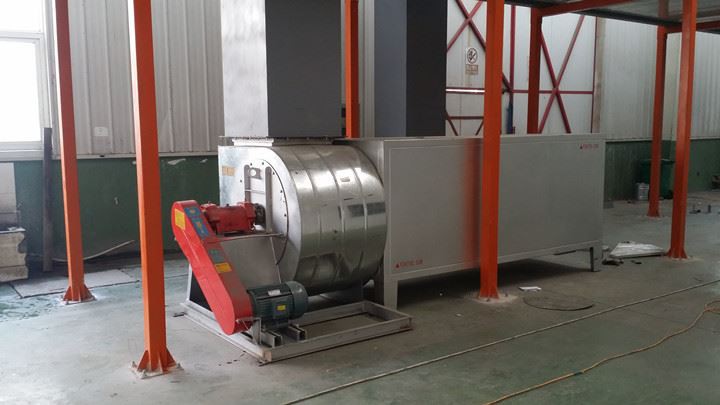

Gas Curing Oven
Assembled structure and can be installed easily at site to reduce transportation cost.
***Product and Feature
Description: Gas Curing Oven
Origin: China
Certification: CE
Control: touch screen control
Advantage and feature for gas curing oven:
(1) Manual oven, batch type
(2) Heating energy: gas
(3) High quality rock wool insulation board thickness: 100mm
(4) Assembled structure and can be installed easily at site to reduce transportation cost.
(5) Riello burner; save energy and most efficient setting
(6) Heating system uses stainless steel material fan blades, stainless steel hot air tunnel, and water cooling high quality bearing
(7) Bottom track inside and outside with high temperature resistance wheels; trolley can load parts at one time
(8) Patented door lock with automatic lock shaft raising system, to avoid touching on the bottom track during door opening
(9) Oven temperature, hot air temperature and curing time are all automatically controlled.
 |  |
Technical specification of the gas heating batch oven:
(1) Fan motor power can be 3kw or customized
(2) Gas curing oven size and specifications can be customized as well
(3) Curing temperature and time: 20min under temperature of 190~200℃
Welcome to come to visit us and discuss powder coating equipment together.
***Application
(1) Gas curing batch oven is good for batch work of metal parts powder curing.
(2) Gas curing batch oven, sometimes can be used as drying oven to dry moisture after pretreatment.
(3) Sometimes powder coating and wet painting curing can use one oven. Some small adjustment is needed. Please contact for details.
***Working Video
***FAQ
(1) Q1: --Production leadtime?
--20days~30days.
(2) Q2: --Are you a trading company?
--No, we are manufacturing factory.
(3) Q3: --Can you customize my LOGO? OEM?
--No, we only do our own brand. We have two brands: JOBON, PENTOO
(4) Q4: --If there is quality issue and problem with the machine?
--We have professional after-sales team to provide you with online guidance.
(5) Q5: --What is service life for this type of curing booth?
--20years.
(6) Q6: --What max temperature can this oven allow?
--250degree working temperature, and hot air tunnel 300degree.
(7) Q7: --Can I buy heating system only?
--Yes. We can provide technical support for building up the whole oven.
***Warranty/After Sales Service
(1) One-year warranty
(2) Maintenance parts available all the time
(3) 24hours on line sales service available
***About JOBON company
(1) ISO9001
(2) High-Tech factory
(3) Start from 1999 to manufacture and supply powder coating machinery
