Diesel|Fuel Heating High Efficient Metal Coating Curing Oven
Diesel heating powder coating curing oven adopts hot air circulation heating to heat the parts, and there are heat exchangers inside of the diesel heating system, so your parts won't get contaminated, and the smoke will fly outside directly and not go into the oven.
The diesel|fuel heating high efficient metal coating curing ovens are widely used in some Middle-east countries.
Here below are some standard oven dimensions for your reference:
| Item# | Outer size (L*W*H) | Inner size (L*W*H) |
| 1 | 1900mm*2300mm*2400mm | 1600mm*1900mm*2000mm |
| 2 | 2850mm*2300mm*2400mm | 2550mm*1900mm*2000mm |
| 3 | 3800mm*2300mm*2400mm | 3500mm*1900mm*2000mm |
| 4 | 4750mm*2300mm*2400mm | 4450mm*1900mm*2000mm |
| 5 | 5700mm*2300mm*2400mm | 5400mm*1900mm*2000mm |
| 6 | 6650mm*2300mm*2400mm | 6350mm*1900mm*2000mm |
The diesel | fuel heating metal coating curing oven can be designed to be with two-end doors and one-end doors.
The two-end door curing oven can do a continuous job to increase productivity.
Features of the one-end door diesel heating metal coating curing oven:
Equipped with 1 pair of inner rails, 1 pair of out rails, and trolleys with a loading capacity of 1000kgs;
100mm high-density Rockwool for heat insulation

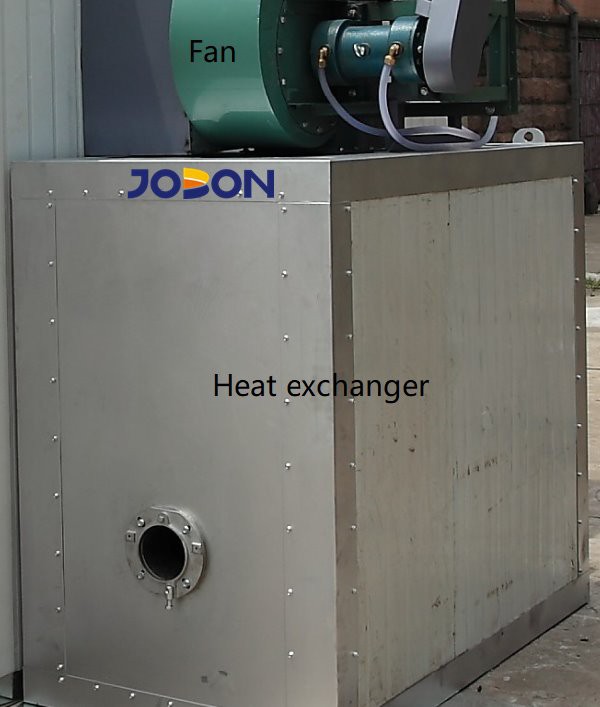

Equipped with heat-exchanger type hot air circulation heating system, so the parts won't get contaminated by the smoke
The diesel heating system is mainly made of 304/316# stainless steel, which can withstand high-temperature heating
Fan impeller: 304# stainless steel
It is equipped with a set of water cooling systems which is necessary to make the oven live long.
1 set of touch screen temperature controllers
Assembled structure oven, all panels are finished processing before the shipping, so no extra processing work at your field and you can just install the diesel heating metal coating curing oven like giant Lego blocks
Spare parts: oil nozzles
After-sale service:
1 full set of installation files to indicate more details about setting-up steps
online technical support
Leadtime: 15-20days
Package: Wooden packing
