Automatic Powder Coating Line System (Sold To 40+ Countries)
Automated powder coating line can have different speed basing on customer production capacity requirement
Automatic Powder Coating Production Line
Brief introduction:
Automatic powder coating lines utilize an automated spray booth system, saving labor during the spraying process. Their core principle is to evenly apply and cure the powder coating to the workpiece surface using the principle of electrostatic adsorption.
Advantages:
- High production efficiency
- Stability
- Uniform coating
Applications:
Widely used for surface treatment of mass-produced metal products, such as home appliances, automotive parts, and aluminum profiles.

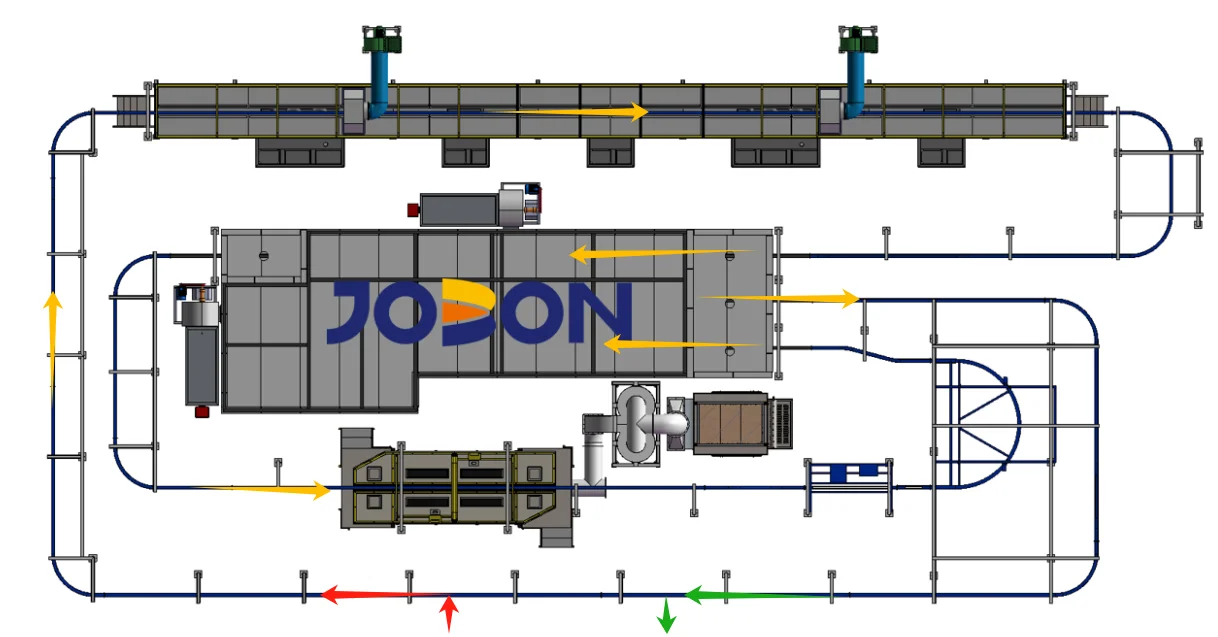

Product Description
|
No. |
Automatic Powder Coating Line Equipment List |
|
1 |
Automatic Spraying Pretreatment Tunnel |
|
2 |
Automatic Booth with large Cyclone Two Stage Recovery System |
|
3 |
Drying Oven |
|
4 |
Curing Oven |
|
5 |
Conveyor System (chain, rails, columns) |
|
6 |
Reciprocator |
|
7 |
Powder Supply Center |
|
8 |
Automatic Powder Coating Gun |

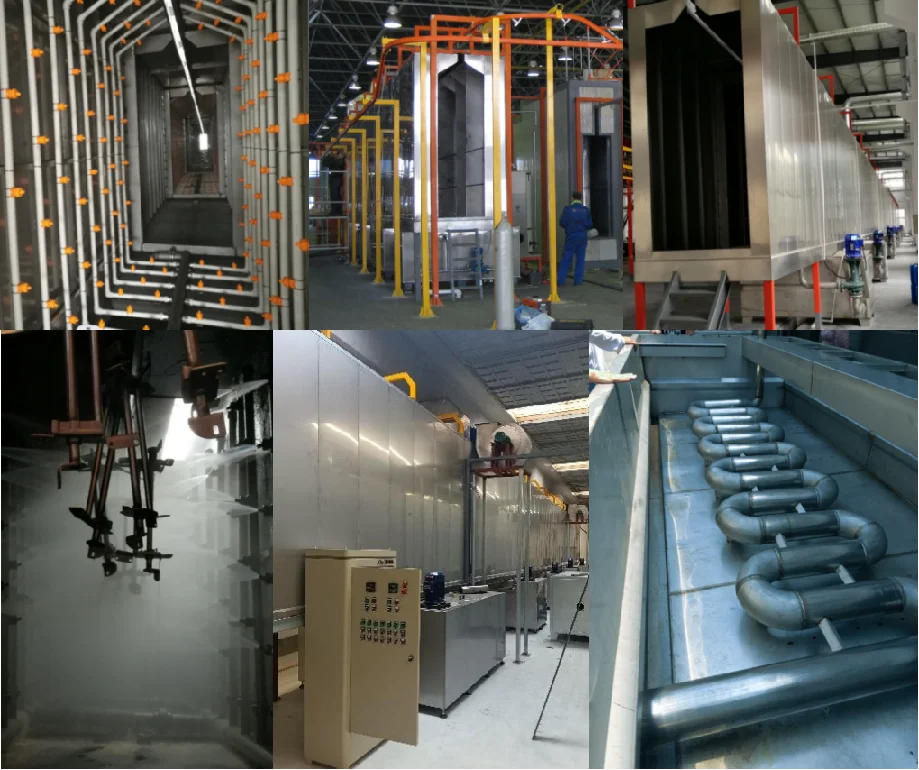

1. Automatic Spraying Pretreatment Tunnel
Made of 304 stainless steel with long corrosion resistance.
The liquid in each spraying process is recycled and reused after spraying.
According to the technological requirements, some liquid medicines may need to be heated before spraying.

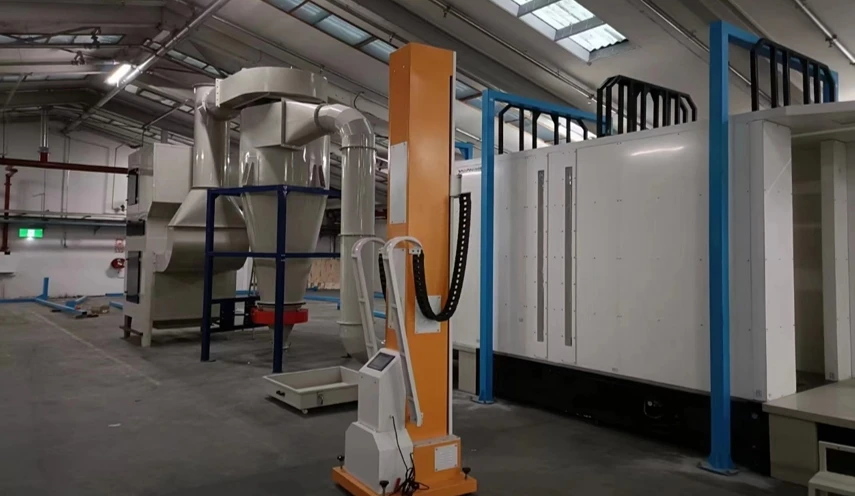

2. Automatic Booth with large Cyclone Two Stage Recovery System
Booth material is PVC:
Won't stick powder, easy to clean.
Not easy to burn.
High hardness and long service life.
Large cyclone material is stainless steel:
It never get corrosion or rust. 30 years long service life.
Powder can always be recycled and inside of the cyclone is always clean.
PVC Automatic Booth:
It can do fast color change in 15-30 minutes.
Change color, no need to change filters.
Powder can be automatically recycled and added.
3. Drying Oven
Working temperature: 80-140℃
150mm rock wool layer
heating system is mainly made of stainless steel
Hot air circulation
Original Italy Riello(Best Burner Brands) burner
Air curtains are used for heat preservation
4. Curing Oven
Working temperature: 110-220℃
150mm rock wool layer
heating system is mainly made of stainless steel
Hot air circulation
Original Italy Riello(Best Burner Brands) burner
Air curtains are used for heat preservation
5. Conveyor System (chain, rails, columns)
Customized chain speed
Gravity automatic tensioning system;
Automatic oil injection chain lubrication system;
Include 4sets of emergency stops

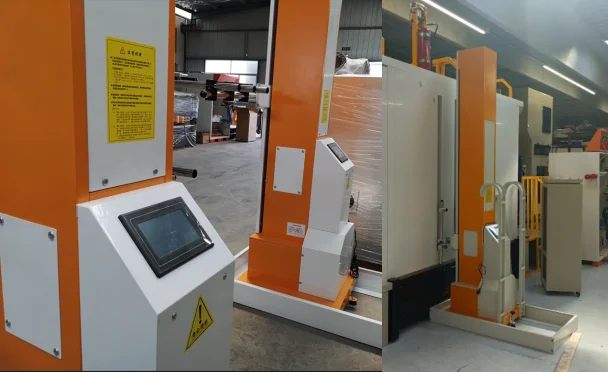

6. Reciprocator
Driven by servo motor, runs smoothly, and the top and bottom limit points will not overshoot.
Maintenance-free reducer, long service life.
7. Powder Supply Center
Automatically clean the powder inside the powder pipes of automatic gun.
Recycled powder can be automatically sieved and go back to powder coating process again.
8. Automatic Powder Coating Gun
JOBON powder coating gun is the best in China.

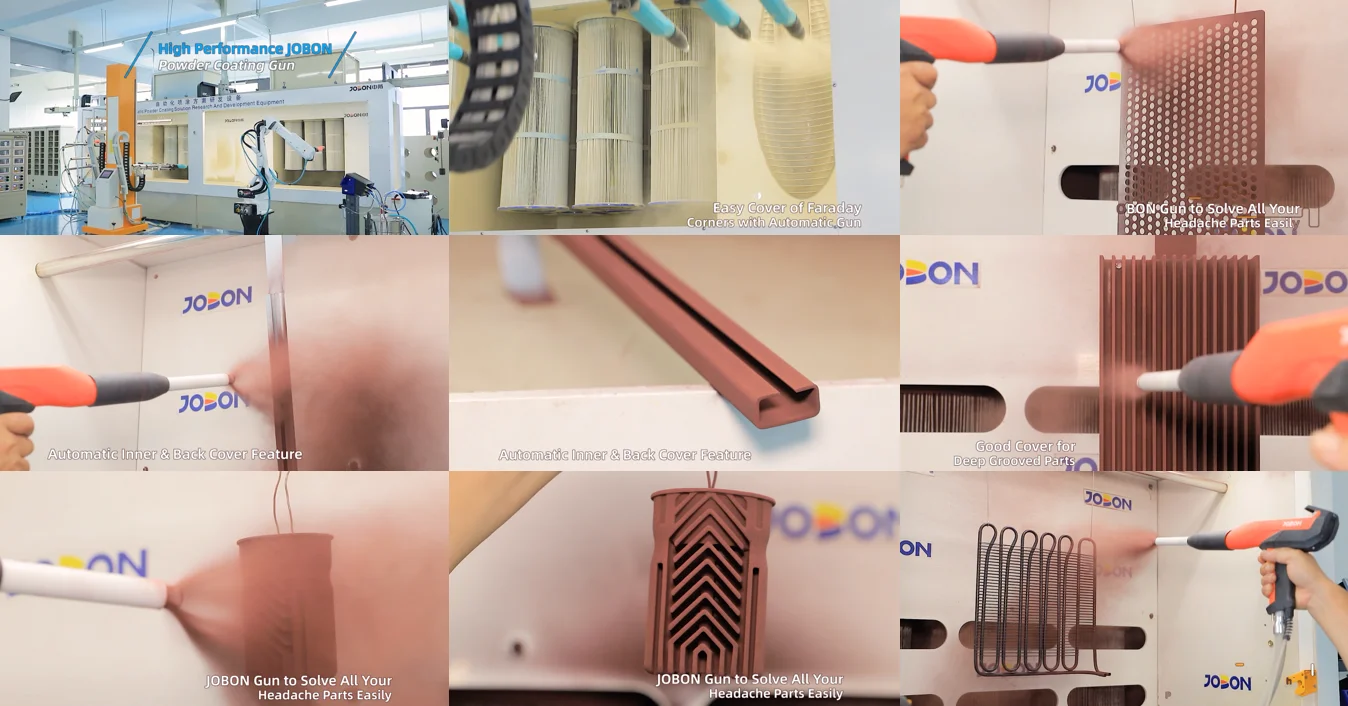

Specializes in spraying complex parts (Faraday angle, blind spots, fences, meshes)
Strong electrostatic adsorption capability

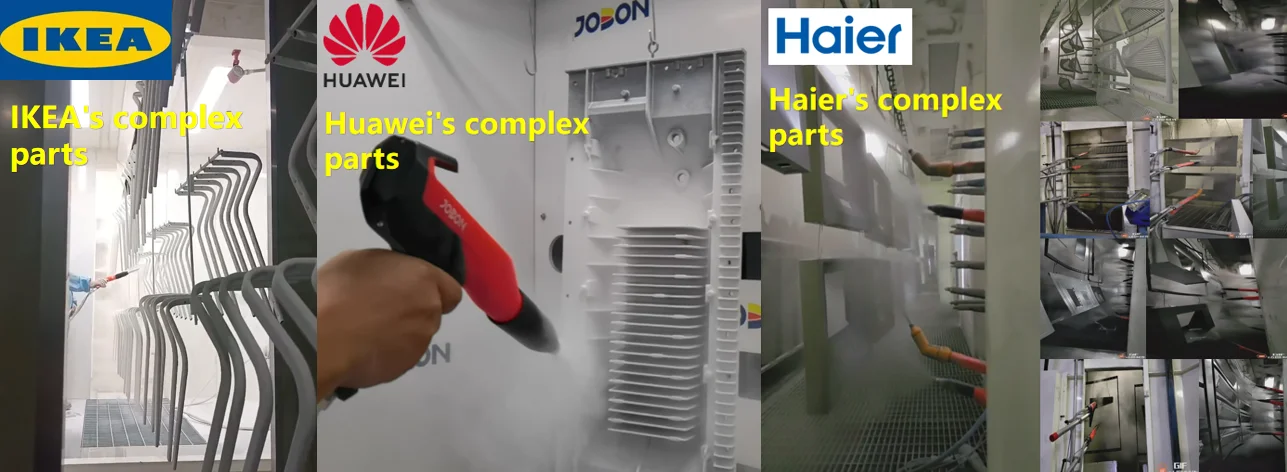

Huawei, IKEA and Haier are using our automatic guns on their automatic. spraying lines.
Company Introduction
1.Company History and Strength
Founded in 1973, JOBON is a leading company in China's electrostatic powder spraying equipment industry and has been certified by the Chinese government as a National High-tech Enterprise.

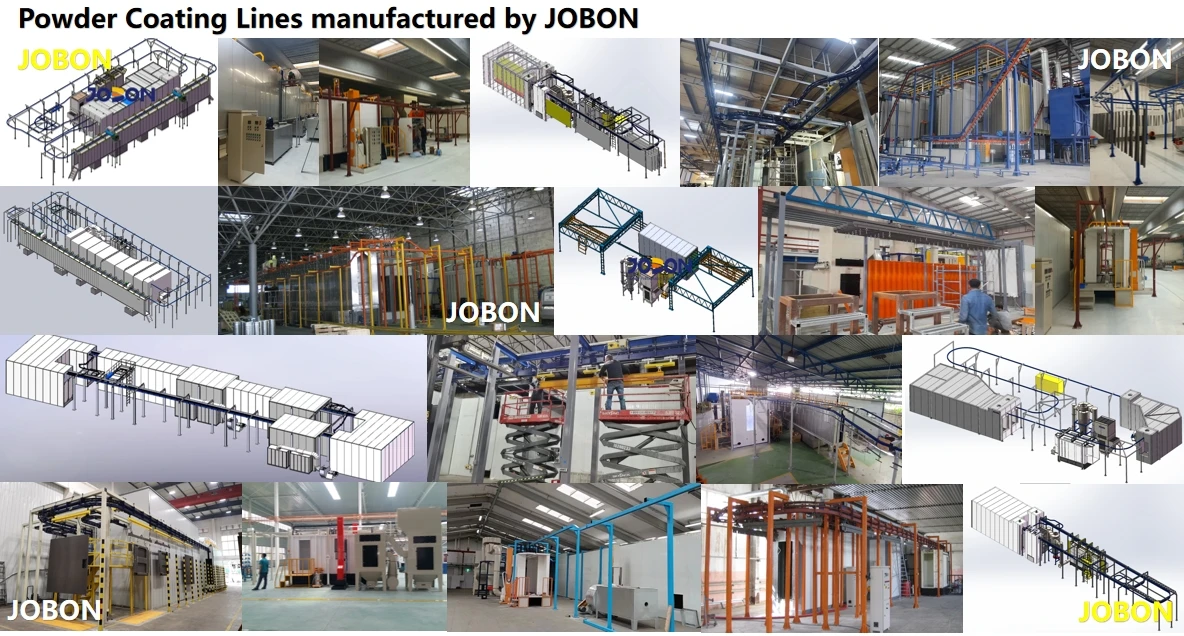

2.Powder coating line manufacturing experience
We have extensive experience in powder coating line manufacturing and have customized large, small, manual, fully automatic, and semi-automatic coating lines for customers in more than 30 countries.
3.Well-known cooperative customers
The following world-renowned companies are customers of our spraying equipment:
